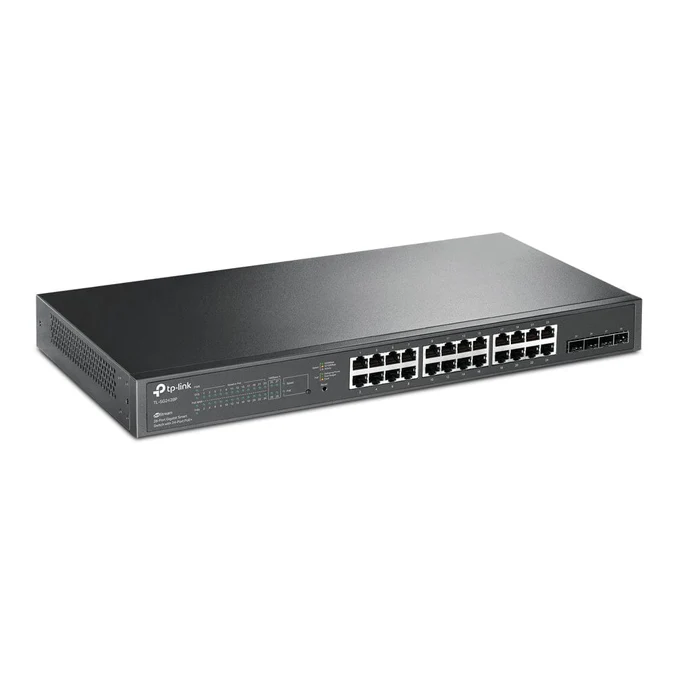

TP-LINK JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+

Features

•  250 W PoE Budget: 24x 802.3at/af-compliant PoE+ ports with a total power supply of 250 W^*.
•  Full Gigabit Ports: 24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections.
•  Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.
•  Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
•  Static Routing: Helps route internal traffic for more efficient use of network resources.
•  Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
•  Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
•  IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Technical Specification

Interface

• 24x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4x Gigabit SFP Slots

PoE Ports (RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• PoE Power Budget: 250 W*

Switching Capacity: 56 Gbps

Bandwidth/Backplane: 56 Gbps

Packet Forwarding Rate: 41.7 Mpps

MAC Address Table: 8K

Packet Buffer Memory: 4.1 Mbit

Jumbo Frame: 9KB

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Fan Quantity: 2

Dimensions ( W x D x H ): 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)

Mounting: Rack Mountable

Package Contents

• TL-SG2428P
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
