Description

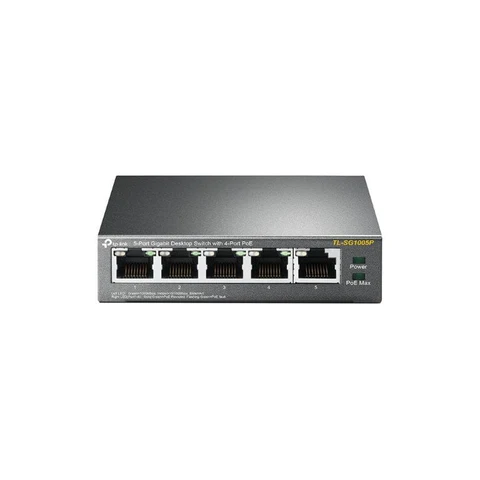

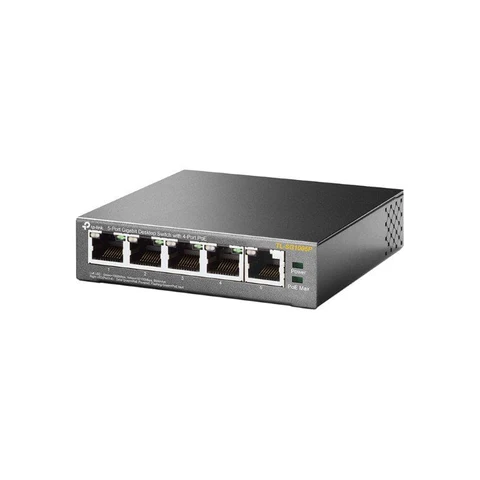

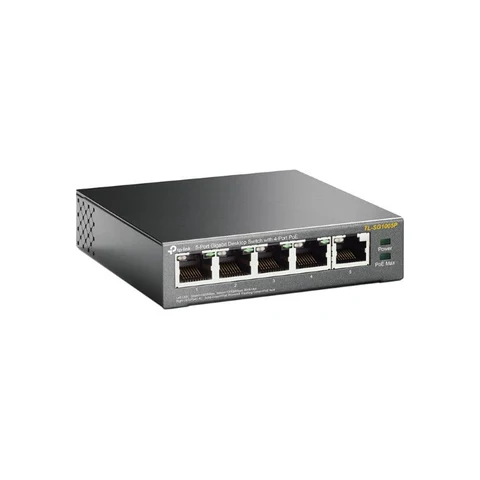

TP-Link TL-SG1005P 5-port GbE Unmanaged Desktop Switch with 4x PoE+ ports
Features
- 5x 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports*
- Up to 250m data and power transmitting range under Extend Mode**
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play, no configuration and installation required
Advanced Features
- Compatible With IEEE 802.3af/at Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
- PoE Auto Recovery (Ports 1-4)
Technical Specification
Product:Â TP-Link TL-SG1005P 5-port GbE Unmanaged Desktop Switch
Interface
-
5x 10/100/1000Mbps RJ45 Ports
-
AUTO Negotiation
-
AUTO MDI/MDIX
Network Media
-
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
-
EIA/TIA-568 100Ω STP (maximum 100m)
-
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
-
EIA/TIA-568 100Ω STP (maximum 100m)
-
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
-
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity:Â Fanless
External Power SupplyExternal Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding RateLÂ 7.44 Mpps
PoE Ports (RJ45)
-
Standard: 802.3 af/at compliant
-
PoE Ports: Ports 1–4
-
Power Supply: 65 W
Mac Address Table:Â 2K
Jumbo Frame:Â 16 KB
Switching Capacity:Â 10 Gbps
Package Contents
- TL-SG1005P
- Power Adapter
- Installation Guide
