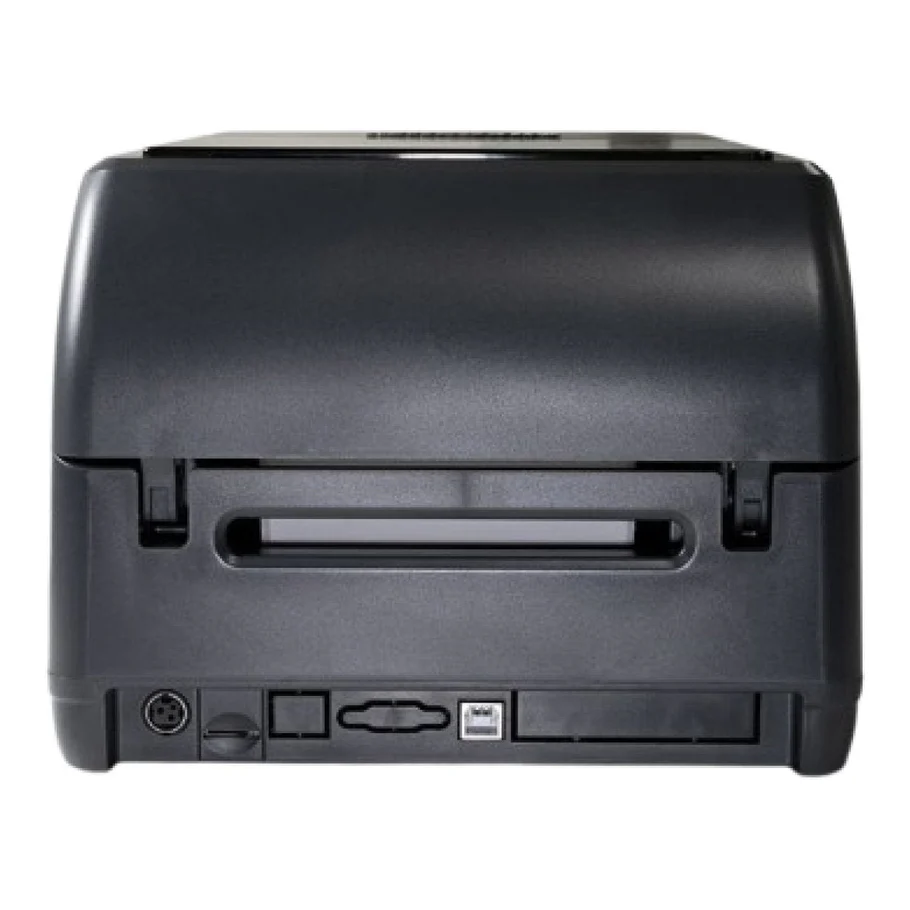

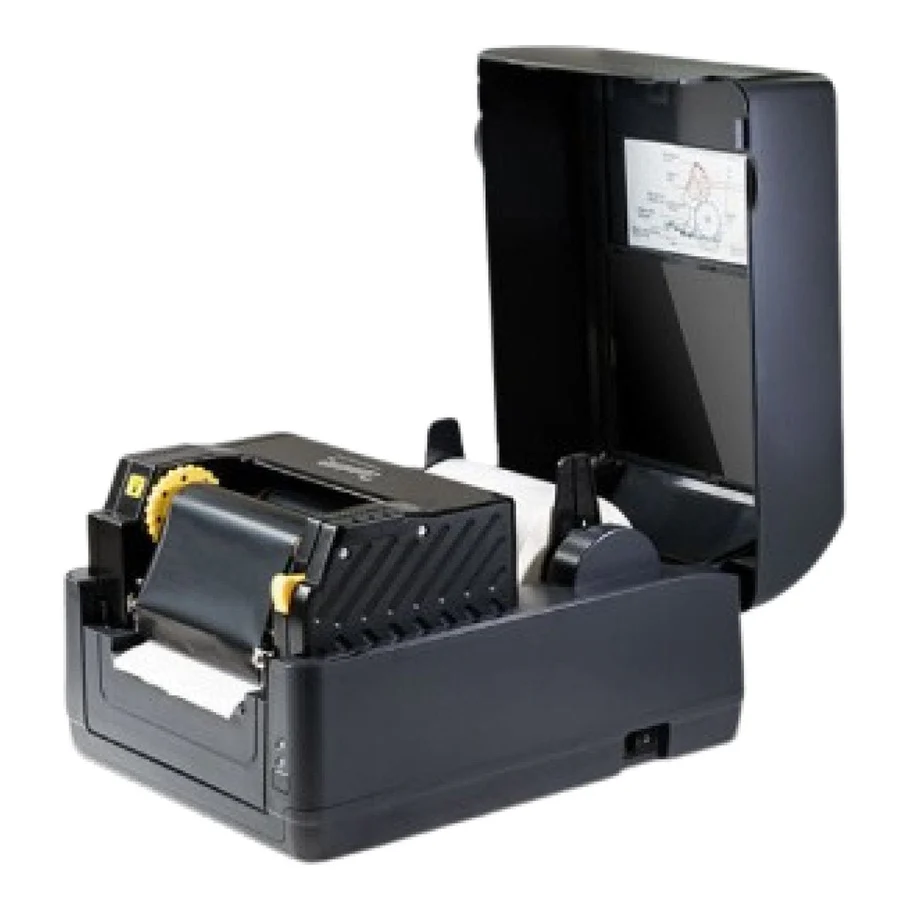

Chainway CP20-2 4-inch 203dpi Thermal Transfer Barcode Printer

Excellent Barcode Printing, Efficient and Easy to Operate

Chainway CP20 is a barcode printer with exceptional printing performance and supports thermal transfer and direct thermal printing methods in 203dpi or 300dpi. The maximum printing speed is 152mm/s (6ips) and can take up 300m Ribbon in Wax, Wax Resin, Resin, etc combined with paper & synthetic material substrates. The CP20 provides a wide variety of communication interfaces like USB, Ethernet, BlueTooth, Wifi, RS232, etc. and supports printer languages of major brands (TSPL / ZPL / EPL / DPL emulation supported), and come with adjustable print head pressure and ribbon pleat to ensure top-quality printing results. CP20 fully meets the high-quality printing needs of scenarios in retail, express delivery, warehousing, manufacturing and other industries. Seagull driver supported.

Specifications:

Printing Method: Thermal transfer / Direct thermal
Resolution: 203dpi / 300dpi
Max. Printing Speed: 152mm (6″)/s, 127mm (5″)/s
Max. Printing Width: 104mm (4.09″)
Max. Printing Length: 1778mm (70″), 889mm (35″)
Ports: Standard USB-A
Power: AC100-240V, 1.8A, 50-60Hz, DC 24V / 2.5A / 60W
Media Types: Continuous, gap, black mark, fan-fold and punched hole
Media Width: 25.4 ~ 118mm (1.0″ ~ 4.6″)
Media Thickness: 0.06 ~ 0.254mm (2.36 ~ 10mil)
Media Core Diameter: 25.4 ~ 76.2mm (1″ ~ 3″)
Label Roll: 10 ~ 1778mm (0.39″ ~ 70″)
Label Roll Capacity: 127mm (5″) OD (External Diameter)
Ribbon Width: 110mm
Ribbon Capacity: Max .300m
Sensors: Gap sensor, cover opening sensor, black mark sensor, ribbon sensor
RAM: 8MB
Flash: 8MB
Expansion: Flash Memory can expansion to MAX 4GB
SDK: Windows / iOS / Android / Linux / Mac
Operating Temp.: 5°C ~ 40°C (41°F ~ 104°F), humidity 25% to 85% non-condensing
Storage Temp.: -40°C to 60°C (-40°F to 140°F), humidity 25% to 85% non-condensing
Processor: 32- bit CPU
Driver: Windows
Barcodes: 1D: Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, Interleaved 2 of 5, EAN -8, EAN -13, EAN-128, UPC – A , UPC-E , EAN and UPC 2(5) digits add – on, MSI. PLESSEY, POSTNET, China POST, GS1DataBar, Code 11, 2D: PDF -417, Maxicode, DataMatrix, QR code, Aztec
Warranty: 1 Year standard carry in warranty
In the Box:

Power Supply / AC Adapter
USB Cable
Label & Ribbon Sample
Chainway CP20 Barcode Printer
